SPECIFICATIONS

Brand Name: xinpuguang

Certification: CE,RoHS,weee

Flexible Solar Panel: Yes

Foldable Solar Panel: No

Hign-concerned Chemical: None

Material: Monocrystalline Silicon

Max. power: 100W

Model Number: solar panel rechargeable battery

Module Efficien: 24%

Nominal Capacity: 100 W

Number of Cells: 30 pcs solar cell

Number of Panels: 1

Origin: Mainland China

Size: 975*550*3mm / 38.38 in * 21.65 in

Type: Solar Panel

is_customized: Yes

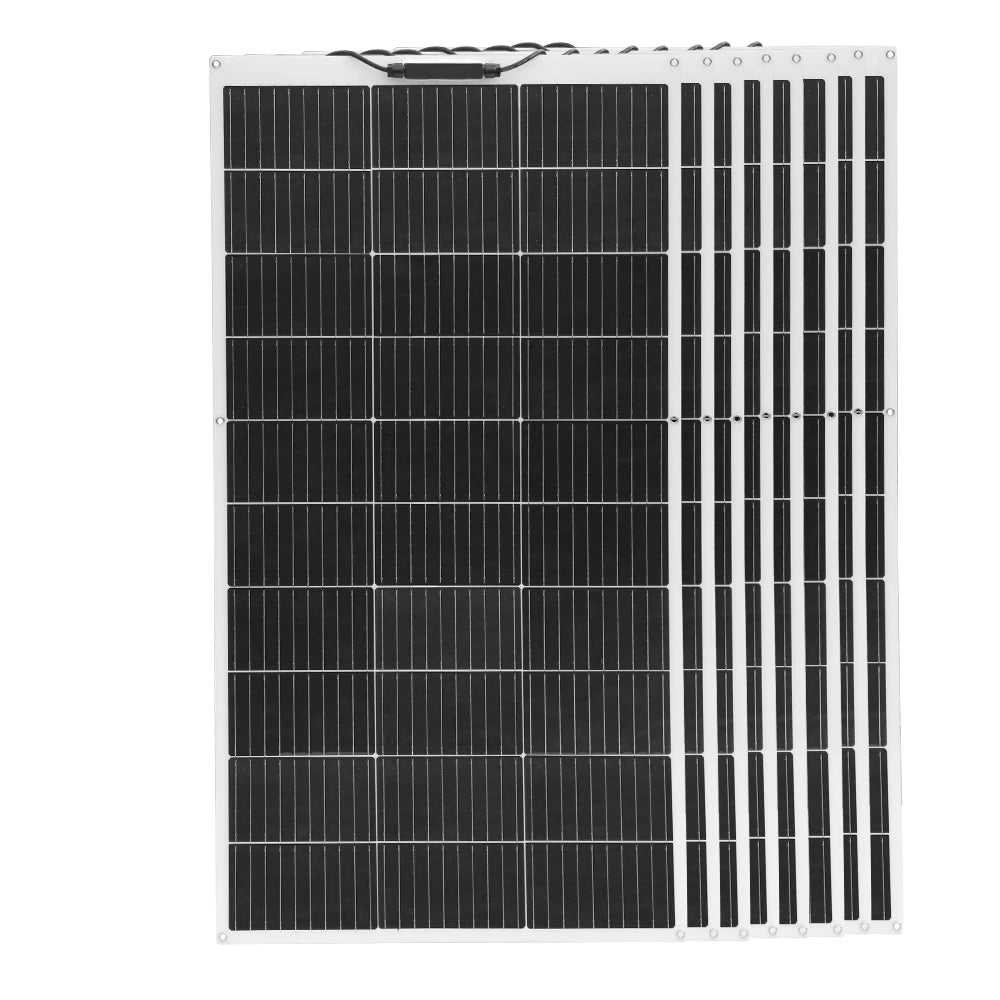

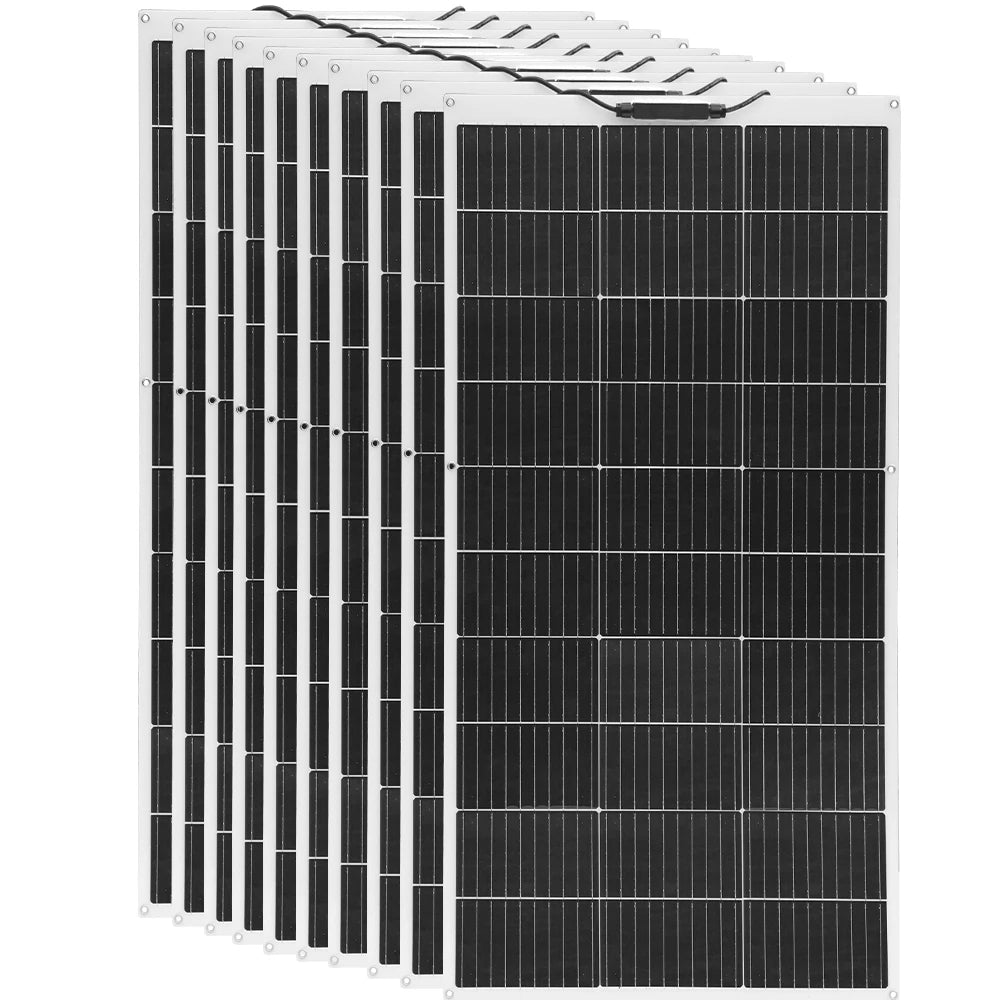

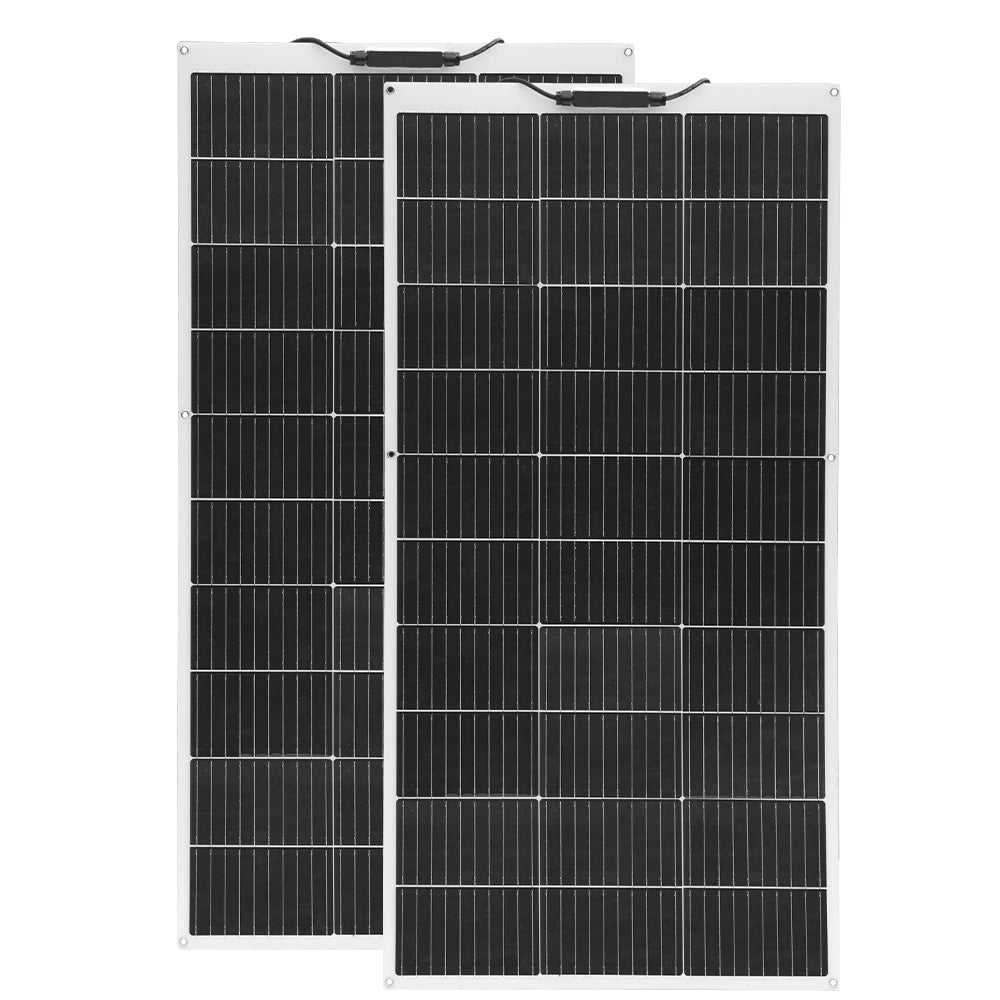

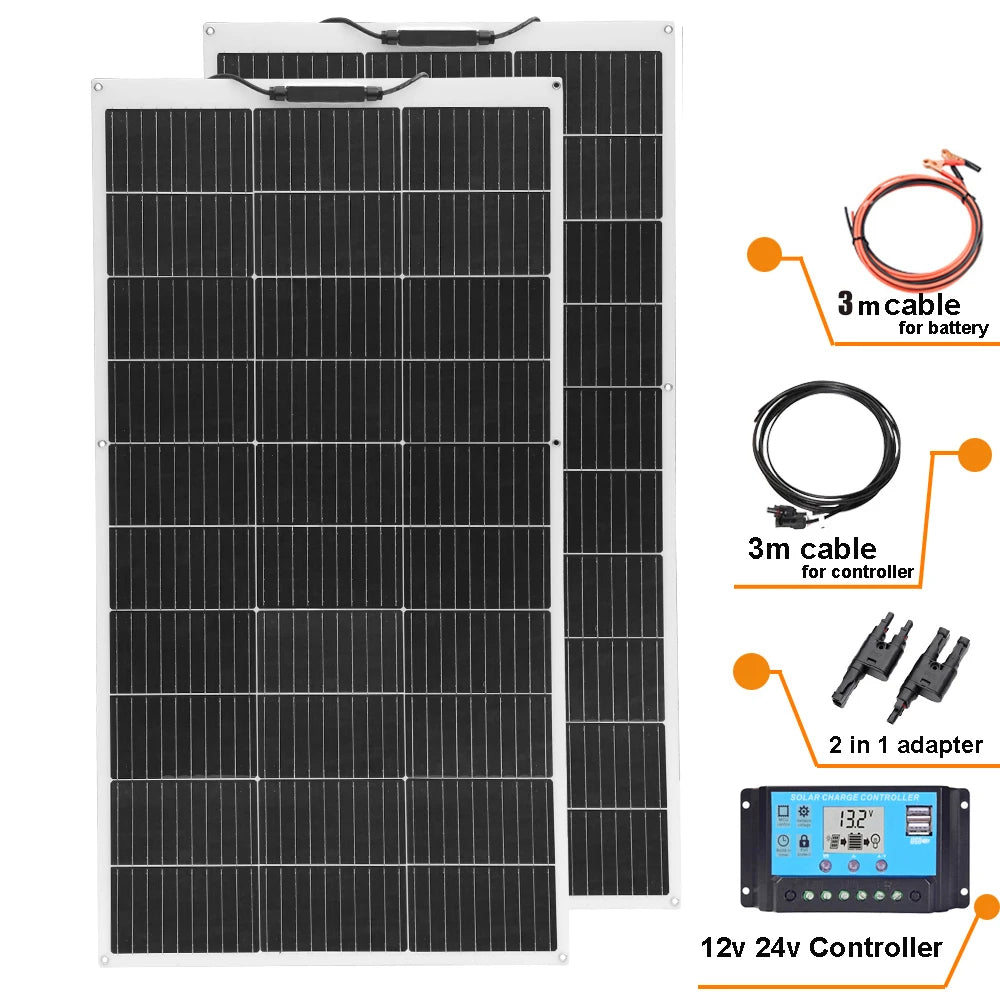

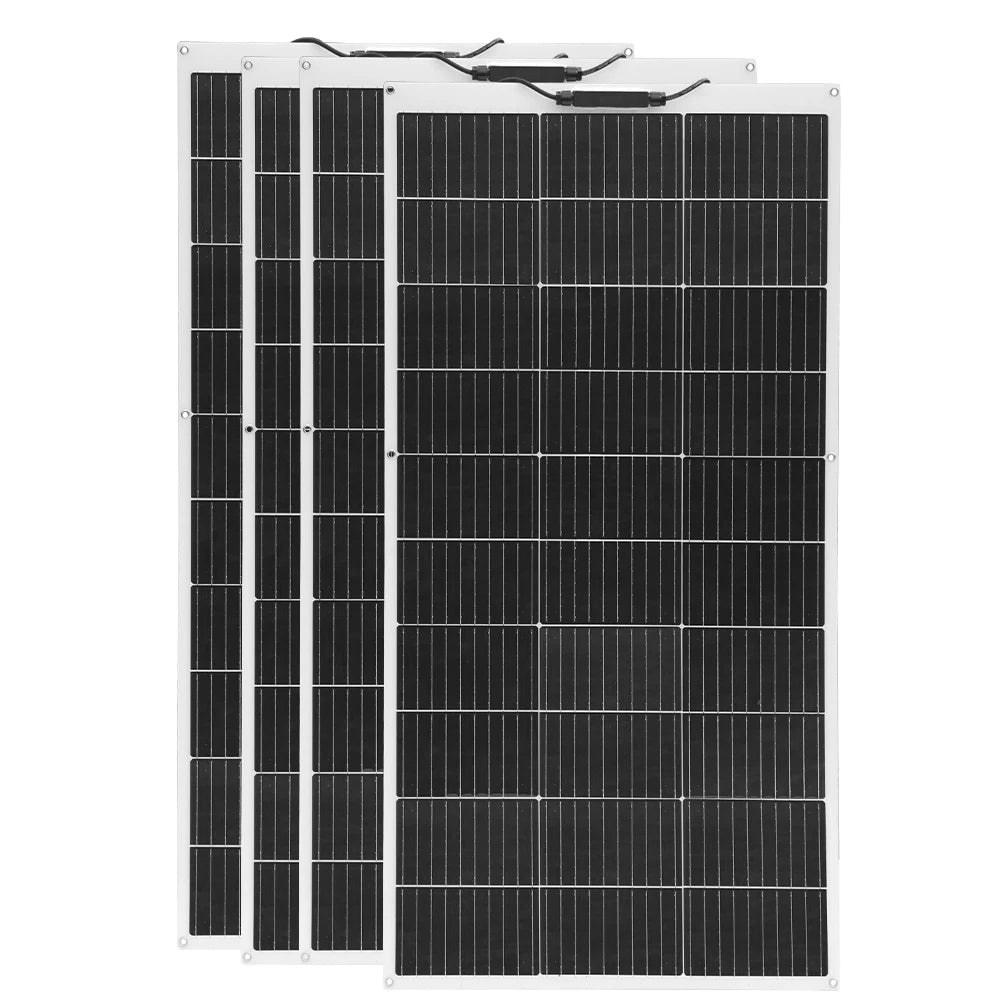

XINPUGUANG 1pcs-10pcs 100W solar panel rechargeable battery 12V 100W- 1000W Flexible Solar panels charger motorhome houses balcony camping

Description

Delivery is not supported in the following areas:

*Spanish island region. The zip code starts with "35" and "38".

remote areas in France, and areas subject to transportation restrictions.

Model: 100W Solar Panel-1000

Material:Monocrystalline Silicon

Maximum Power(Pmax): 100W

Maximum Power Voltage(Vmp):16.5V

Maximum Power Current (Imp):6.06A

Open-Circuit Voltage (Voc): 19.8V

Short-Circuit Current (Isc):6.6A

Maximum System Voltage: DC1000V

Maximum Series Fuse:15A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Net Weight:2.06kg

Dimension:975*550*3mm /38.38 in * 21.65 in

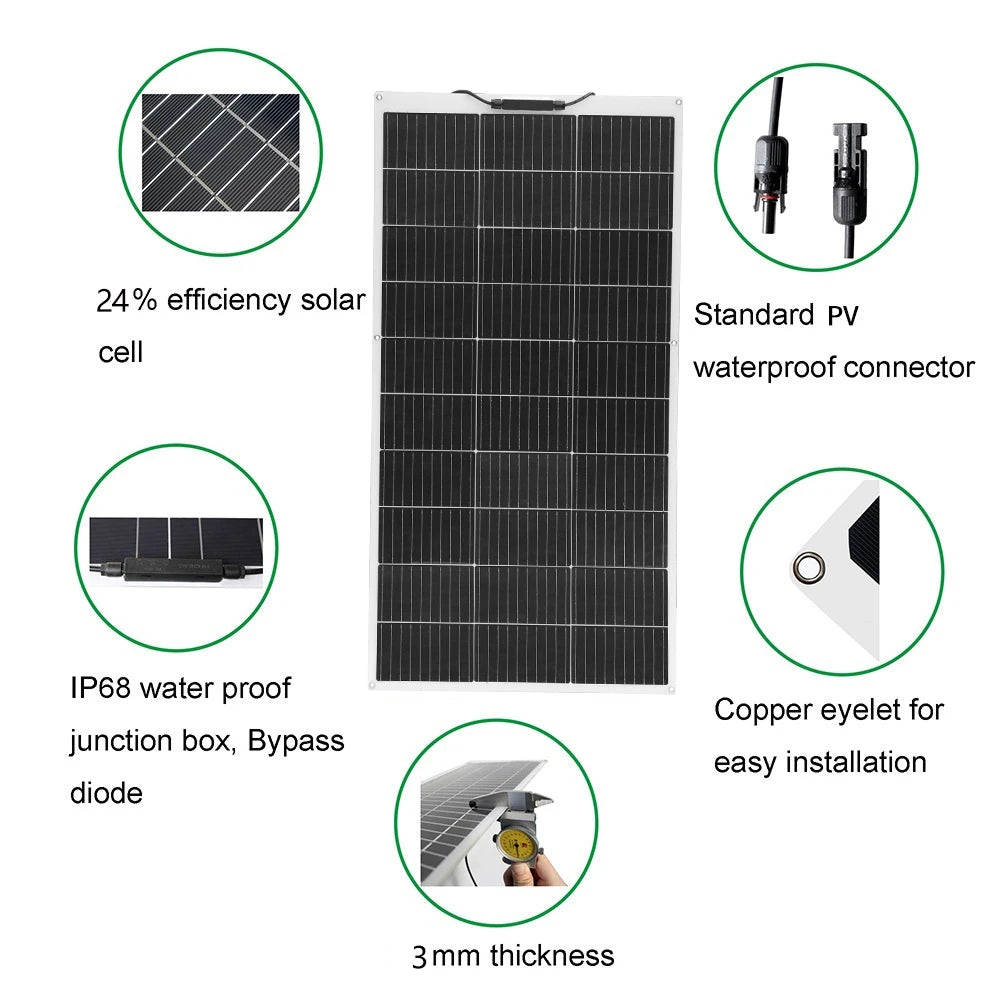

Material structure：

1 floor: PET

2 floor: EVA Film

3 floor: High Efficiency Solar Cell

4 floor: EVA Film

5 floor: EVA Film

6 floor: TPT Backsheet

waterproof level：IP67（Junction Box）

(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.14AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃

(The size is manually measured and there is a certain error. Customers who want accurate size please don't buy，thank you）
